Swadro 42 Rotary Rake

Technical data:

• Single rotor rake with three-point linkage
• Work width 4200mm
• Swath width 800-1500mm
• Transport width 2265mm
• Weight approx 640kg
• Rotor diameter 3300mm
• 13 tine arms, thereof 7 folding tine arms
• 4 double tines per arm
• PTO speed 540 rpm
• Power requirement approx 37 KW (50HP)

Basic equipment:

• 3 point linkage
• Accumulator arms with internal compression springs
• Auto-centering lift-out system of the rake
• Patented headstock tracking unit for cornerings up to 20 degrees
• Drive shaft 1 3/8″, 6 splines incl. overload clutch and freewheel
• Pull-type rotor suspension with KRONE jet-effect gearbox (maintenance free, liquid grease lubricated), completely hardened KRONE Dura-Max cam track. Tine arms with maintenance-free groove ball bearings
• Follow-up double tines, 10mm thick with a large coil diameter and the lift effect for optimum forage quality
• Tines assembled around tine arms to avoid losses
• Manual, stepless adjustment of the rotor work height
• Adjustable transverse rotor inclination
• Tandem rotor running gear with super balloon tyres 16×6 50-8 ensures absolutely quiet running and perfect ground contour following of the rotor
• Telescopic, steplessly adjustable and upward pivoting swath cutrain
• Warning panel

• Single axle with air-pressure brake
• Tyres 620/40R 22.5 – rotor tyres 16×6.50-8
• ISOBUS operating terminal CCI-800 in-cab
• AUX joystick WTK
• Central swath curtain, automatically upward pivoting in road transport position of the rotors
• Brake control (field/road mode) – only in combination with option 1075
• LED working lights
• Krone lift tines – clean forage and high work rates
• Krone jet effect – protects the sward and produces clean forage without poking into the ground
• Maintenance-free rotors and gearboxes – warrant reliable operation and long life
• DuraMax cam track: (3 year warranty) perfect swath presentation and boosted harvest chain efficiency
• Pull-type and cardanic rotor suspension – superior rakes in flat and undulating terrain
• The Krone driveline – mechanical driveline results in minimum service and maintenance and high efficiency
• KRONE dura-max cam track – tine arms with maintenance-free groove ball bearings
• KRONE easy-line driveline (leading rotors operate at approx 25% faster rpm than rear rotors)
• Rotors individually protected from damage by knock-out clutch
• Drive train with freewheel
• Side-independent work width adjustment
• Swath width automatic system
• Rotor height automatic mode (1 rotor is adjusted, all other rotors are adjusted automatically; allows operators to program 2 preselectable rotor heights)
• Single rotor lifting of all 4 rotors
• Hydraulic rotor suspension, selectable from the cab
• 4 wheel rotor chassis incl. 4 trailing guide wheels
• Hydraulic frame ensures transport height less than 4000mm without folding tine arms
• LED headlights and warning panels
• Hectare counter

Technical data

• 4 rotor centre delivery rake
• Work width: 10800-13700mm
• Swath width approx 1400-2600mm
• Transport width approx 2990mm
• Transport height 3990mm (without folding tine arms, hydraulical running gear)
• Weight approx 5800kg (basic machine)
• Rotor diameter 3600mm (front) 3300mm (rear)
• 4×13 tine arms (fixed)
• Maximum PTO speed 540rpm
• Power requirement approx 59kW (80 HP)
• Required hydraulic connections: Load-Sensing

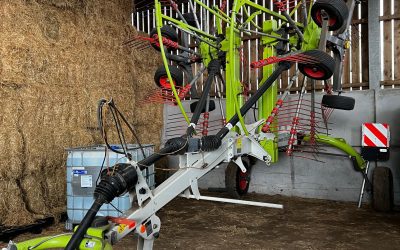

• Four rotor rake
• New central swath curtain
• Hydraulic folding
• Working condition
• Road lights
